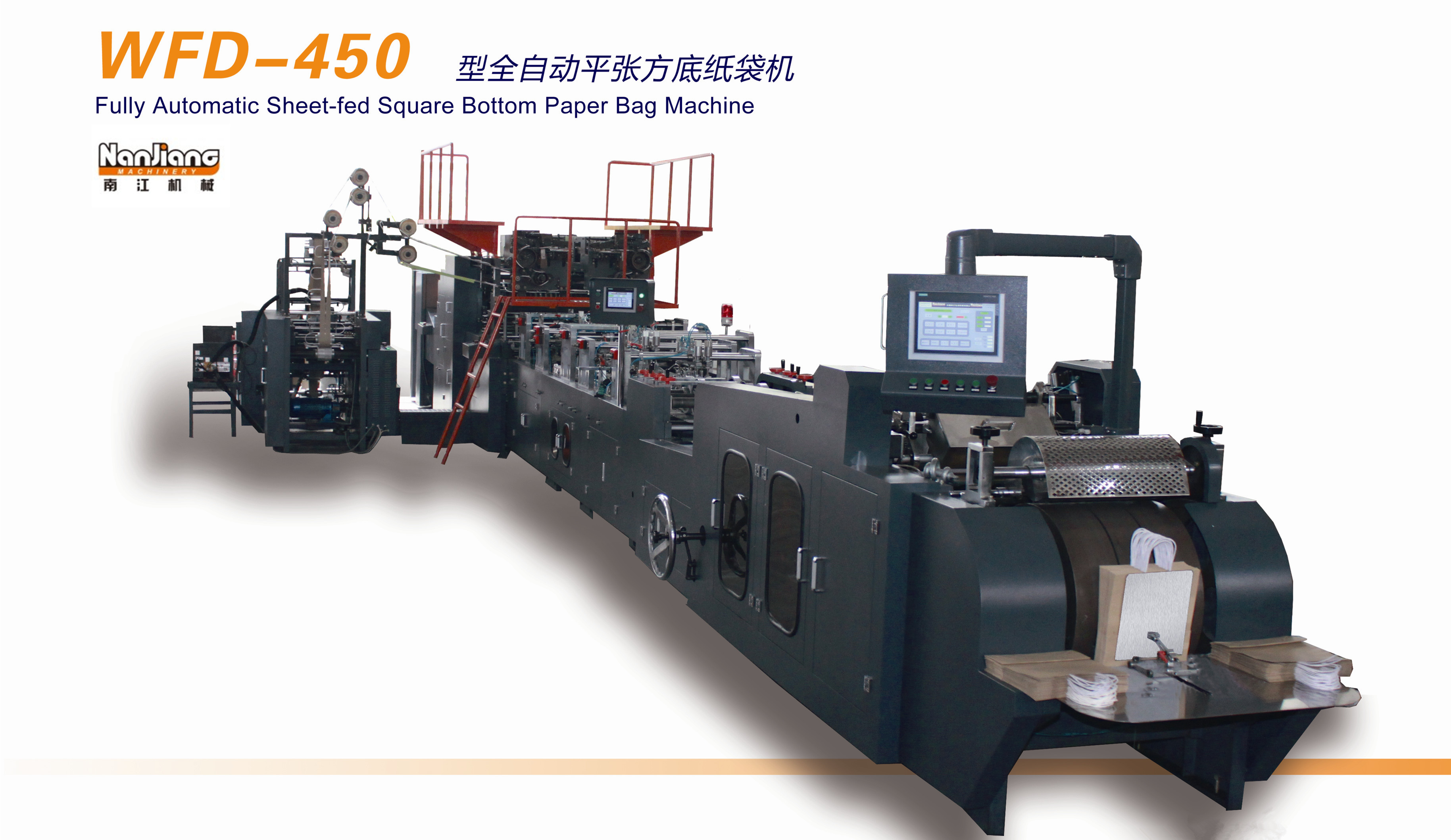

WFD-450 Sheet Feed Carry Bag Machine with top-fold and handle units

WFD-450 Sheet fed Paper Carry Bag with handle machine is fully automatic machine for the production of paper bags with paper twisted rope handle. The material could be Sheet paper or printed sheet paper. Whole machine is controlled by computer central control system with touch screen.

It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from sheet, handle pasting line,top of bag folding, tube forming, bottom forming, bottom glue, bag forming and final bag output,or fold the top and punching holes without handle unit. All steps are completed in-line; this machine is an idea equipment for Twist handle paper carry bags and realize a fully automated line for garment, shoes or all luxury brands packing bag production line which could be directly deliver to customer bags .



Model

WFD-450

Max. Paper size

1225 x 600mm (L x W)

Min. Paper size

625 x 350mm (L x W)

Top fold

40-60mm

Handle Length

Diamention of rope

Paper weight (Handle)

170-185mm

4-6mm

120-250 g/m2

Paper Weight

100-230g/m2

Paper bag size max.

450 x 450 x 160mm(LxWxB)

Paper bag size min.

220 x 220 x 80mm(LxWxB)

Speed

40-60bags/min.

(50-75bags/min. if without handle)

Machine Weight

Machine Power

20000KG

22KW

Machine dimensions

15000*4500*2500MM


Video
