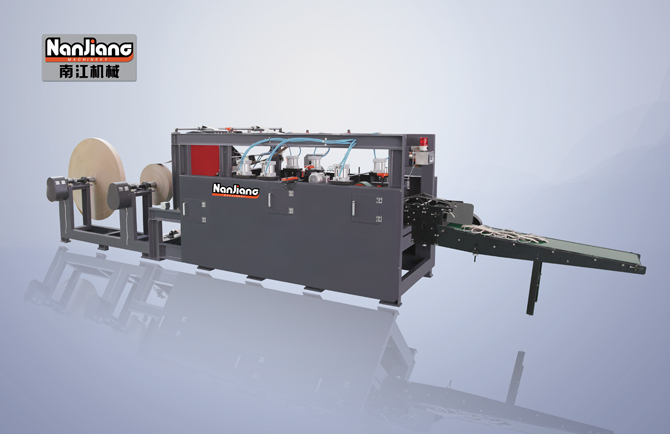

WFD-100 High-speed Paper Handle Machine
WFD-100 高速手挽機(jī)



Performance And Characteristics:

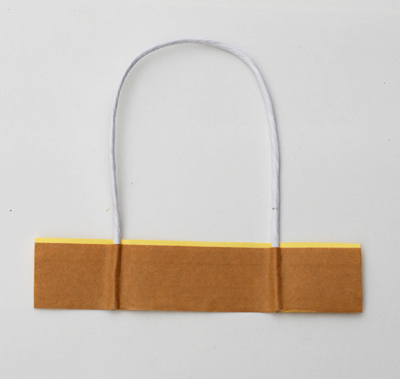

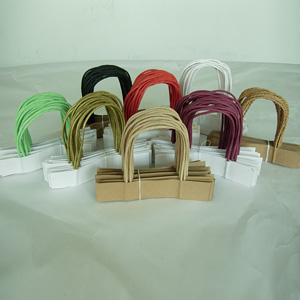

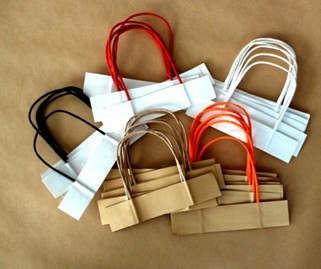

This is a high-speeded machine for producing paper handles, it pastes twist paper ropes and paper together for forming handles, and then cut off them in separate automatically, Besides, it has the functions of handles counting, handles putting in order and handles collecting.
Main Technical Parameter

Handle length

105-155mm

Handle width

95mm

Paper board width

35-55mm

Paper board length

190mm

Paper board weight

100-120g/

Rope diameter

3-5mm

Maximum Speed (bag/min.)

200-500

Total Power (kw)

6KW

Machine Weight (Ton)

2.8T

Machine Dimension (L*W*H)

6000*1300*1800mm



Previous:WFD-100-1 High Speed twist-rope & Flat-belt handle machine
Next:WFD-100-2 Right-angel Flat belt Handle Machine
